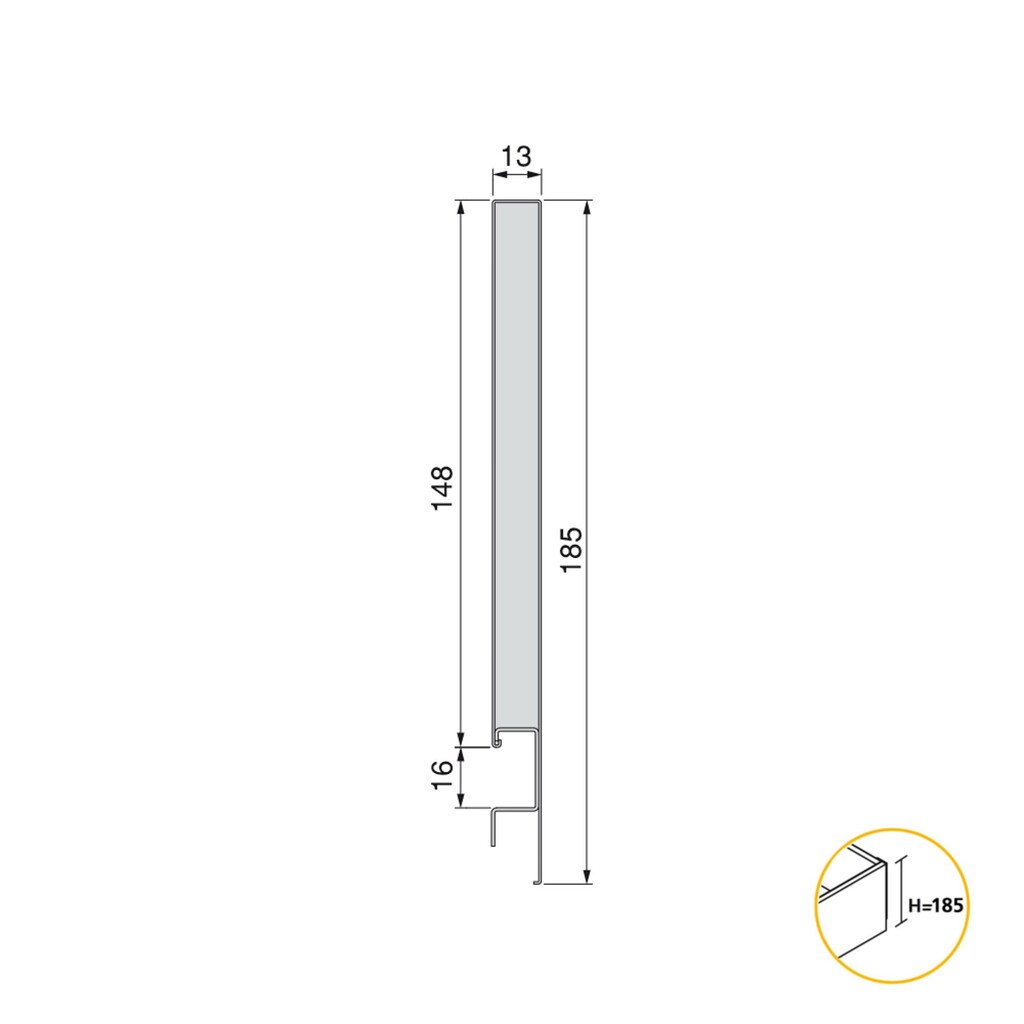

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey

SKU 3101735 / EAN 8432393010557

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey-Primary

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey-1

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey-2

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey-3

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey-4

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey-5

External drawer Concept 30kg height 185mm, depth 500mm, Steel, Anthracite Grey-6

Depth	Packaging	Finishing	SKU
350	1 KIT	White painted	3101412
400	1 KIT	White painted	3101512
450	1 KIT	White painted	3101612
500	1 KIT	White painted	3101712
350	1 KIT	Anthracite grey	3101435
400	1 KIT	Anthracite grey	3101535
450	1 KIT	Anthracite grey	3101635
500	1 KIT	Anthracite grey	3101735

Product features

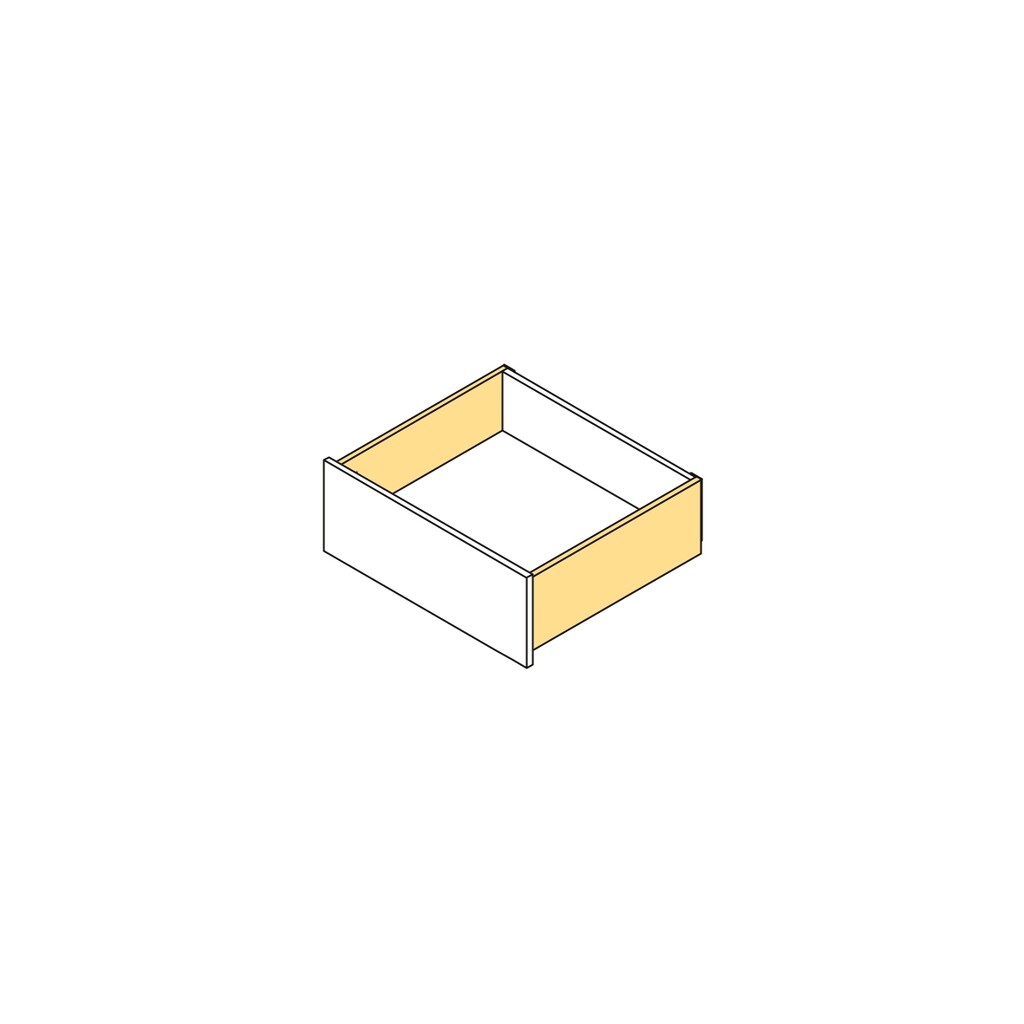

Kit of fittings needed to assemble an exterior drawer with a height of 185 mm and depth of 500 mm, apart from the front, back and bottom.
Includes the total extraction runners, set of sides and set of front hooks for the outer drawer.
The runners are total extraction with soft closing and a maximum load of 30 kg.
Made from steel painted anthracite grey colour.

Product information

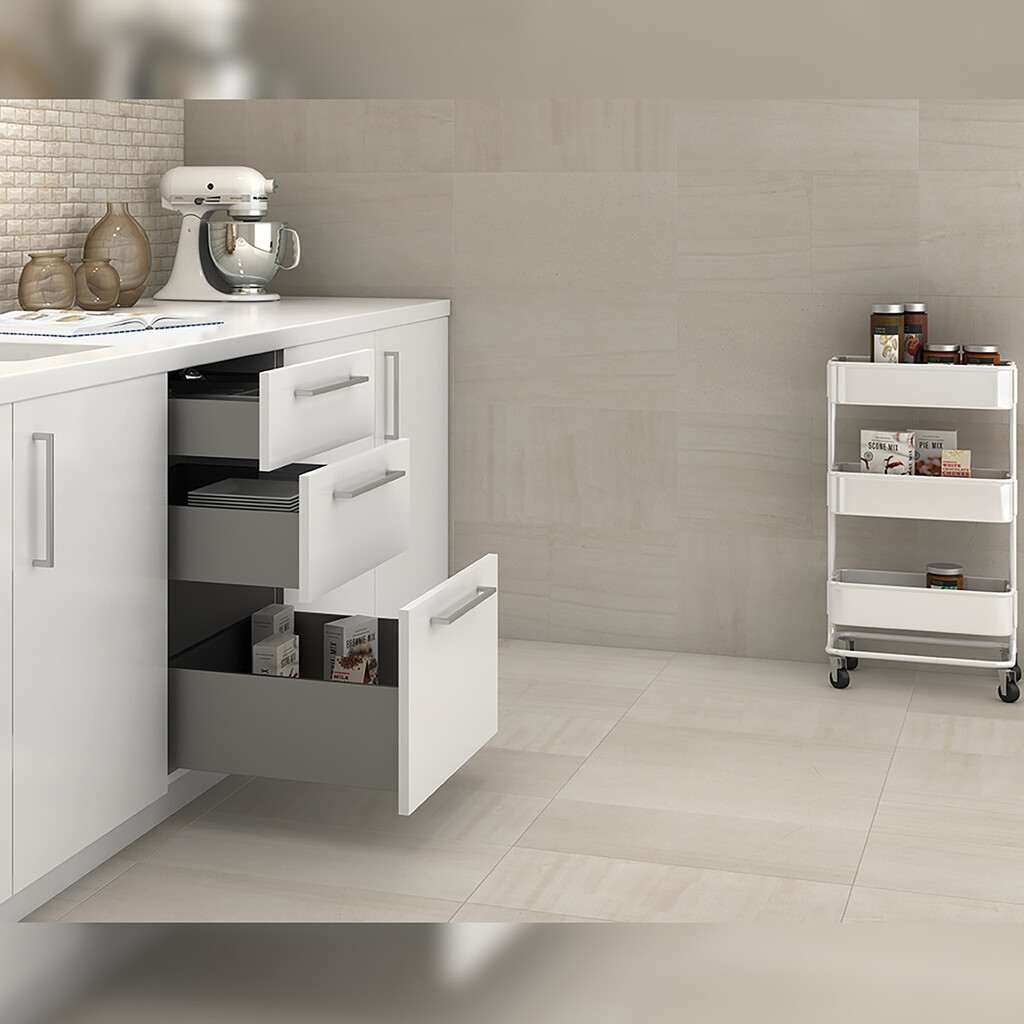

The Concept drawer for kitchens and bathrooms is available in a kit format with all of the fittings needed for its assembly. It also stands out for its great load capacity that can support up to 30 kg per drawer. It includes total extraction runners with soft closing , a set of hooks and sides available in a white painted or anthracite grey finish. You will only need the boards cut to the correct dimensions for the bottom, the back and the front of the drawer.

Components

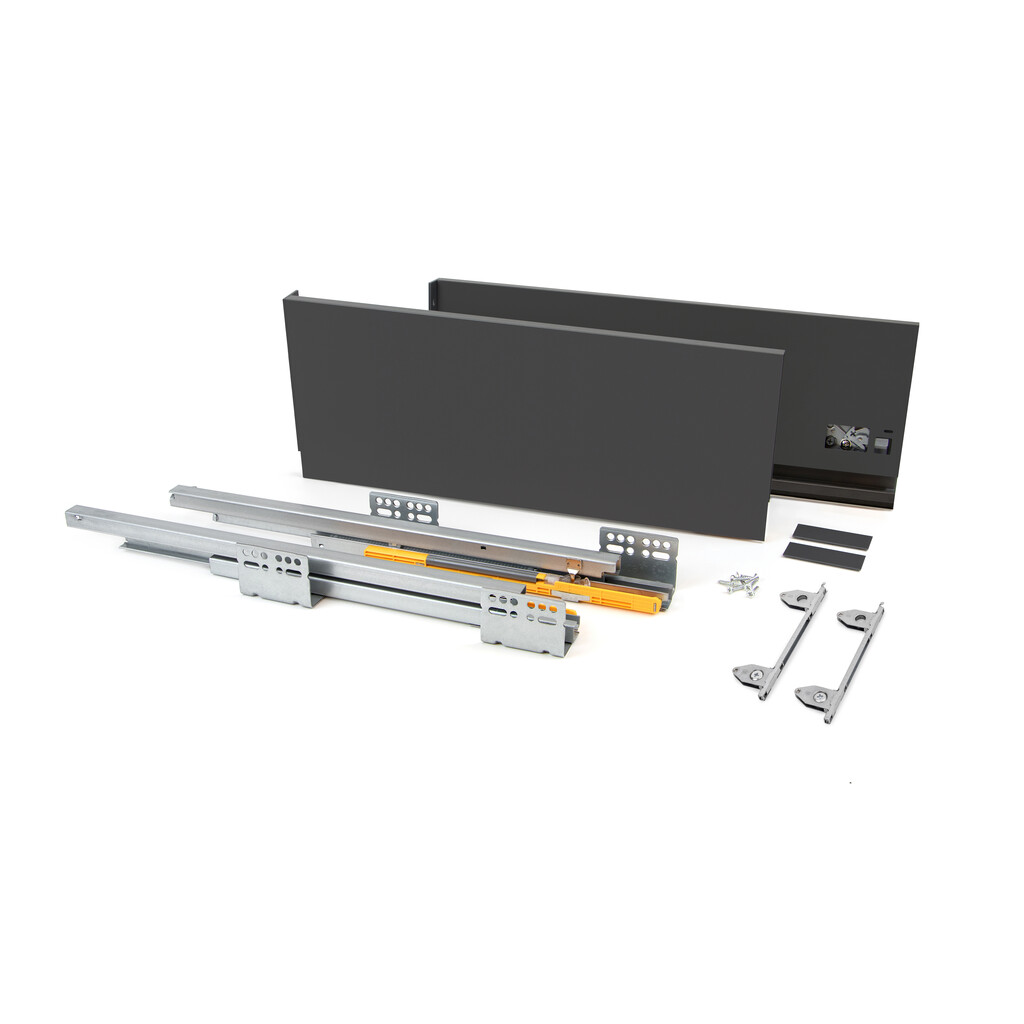

1 pair of runners, 1 pair of sides, 1 set of frontal hooks, screws

Documentation

Sketch Assembly instructions

FAQ

What is the RAL code of the finishes of the sides of the Concept drawer?

The RAL code of the anthracite grey finish of the sides of the Concept drawer is approximately 7043. The RAL code of the white finish of the sides of the Concept drawer is approximately 9003.

How can I assemble a drawer for kitchens, lounges, wardrobes and bathrooms type Concept?

The following video shows how you can easily assemble the Concept drawer.

Are the drawer measurements (dimensions and machining) of the 30 kg Concept slides compatible with the 50 kg slides?

Yes, the drawer measurements, including its dimensions and machining, are fully compatible. The board cutting measurements, mounting dimensions and placement of the drawer in the module are exactly the same.This allows customers to mount 30 kg Concept slides and 50 kg slides on the same drawer.

What is the RAL code of the finishes of the sides of the Concept kitchen, household and bathroom drawer?

The RAL code of the anthracite grey finish of the sides of the Concept kitchen, household and bathroom drawer is approximately 7043.The RAL code of the white finish of the sides of the Concept kitchen, household and bathroom drawer is approximately 9003. Although it is necessary to bear in mind that the white silk colour of said drawer is metallized and the RAL codes are for flat colours.

Is the machining needed for the assembly of the Concept drawer the same as on the Vantage-Q drawer or on the Slim drawer?

The board cutting dimension and the position of the hook on the front are different. However, the hole pattern of the guide rail is the same for the Concept, Vantage-Q and Slim drawers.
