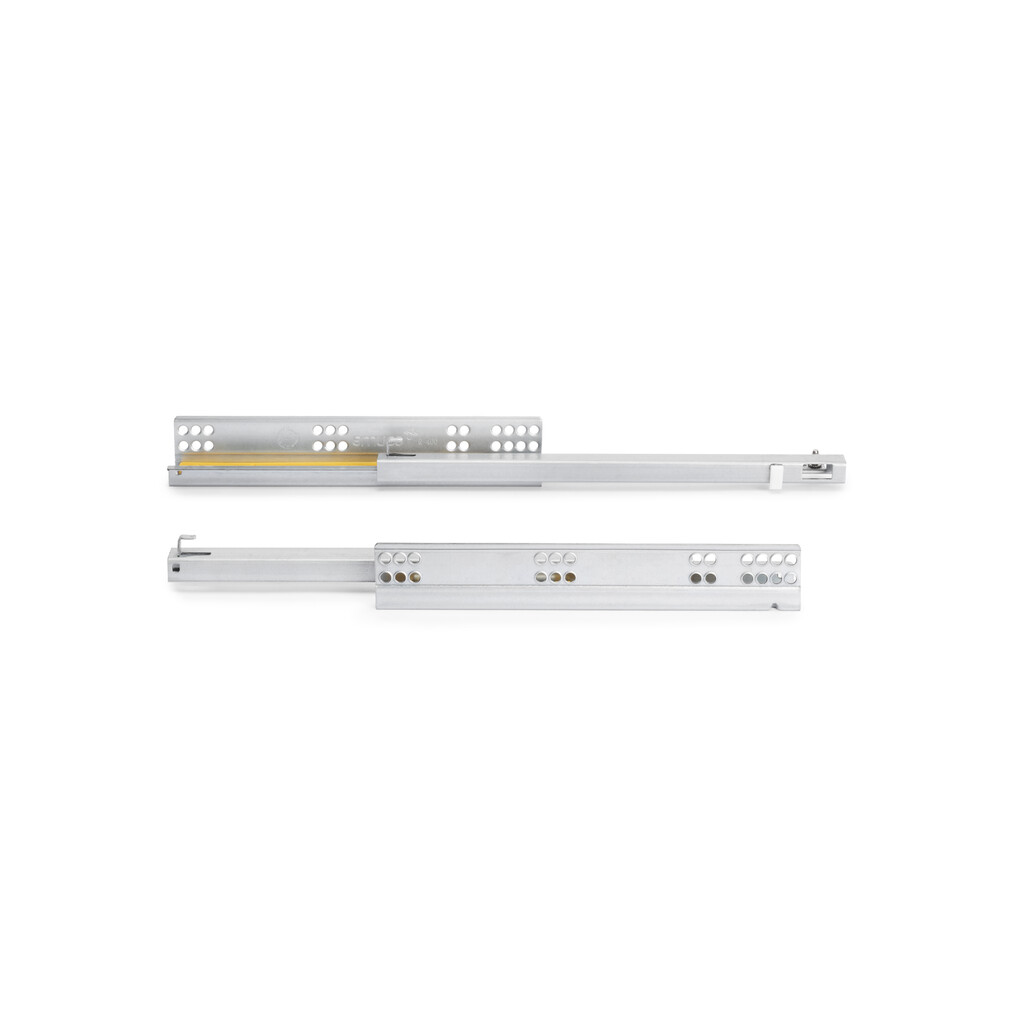

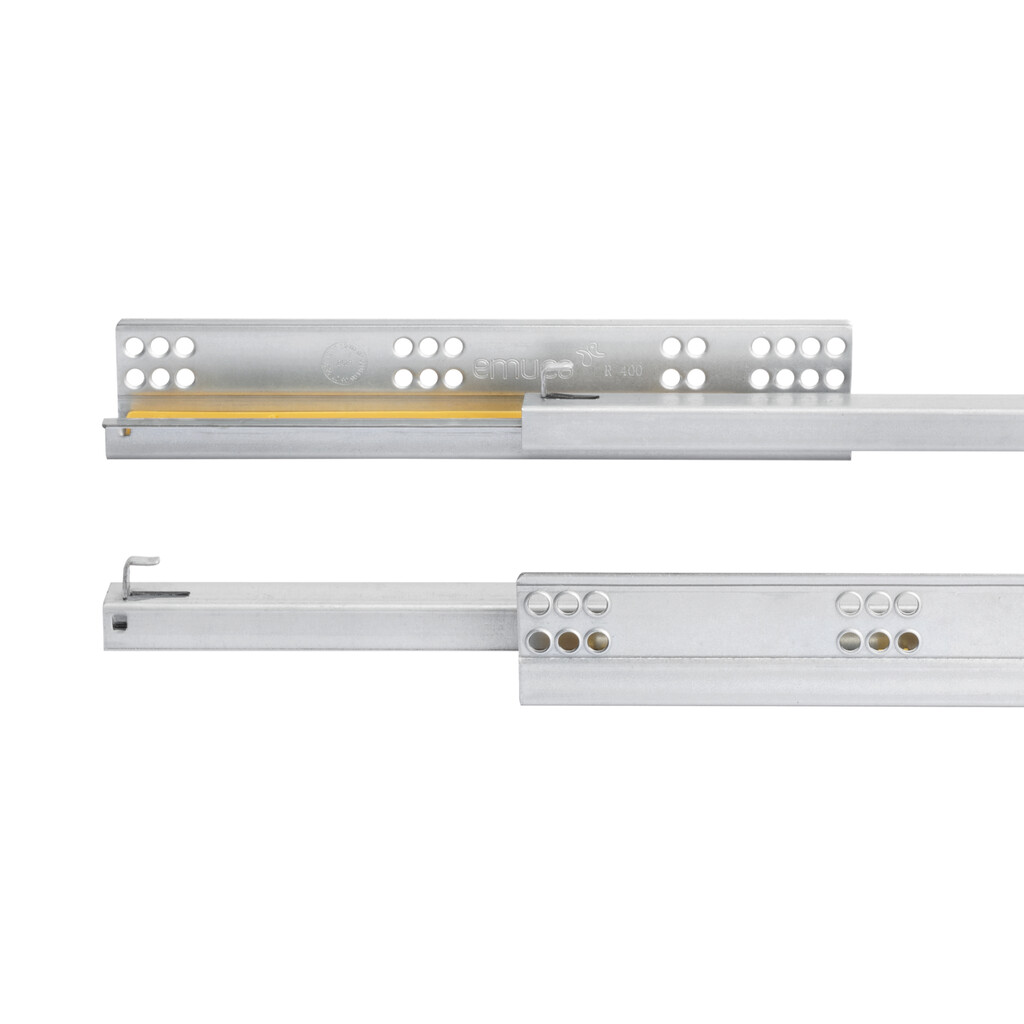

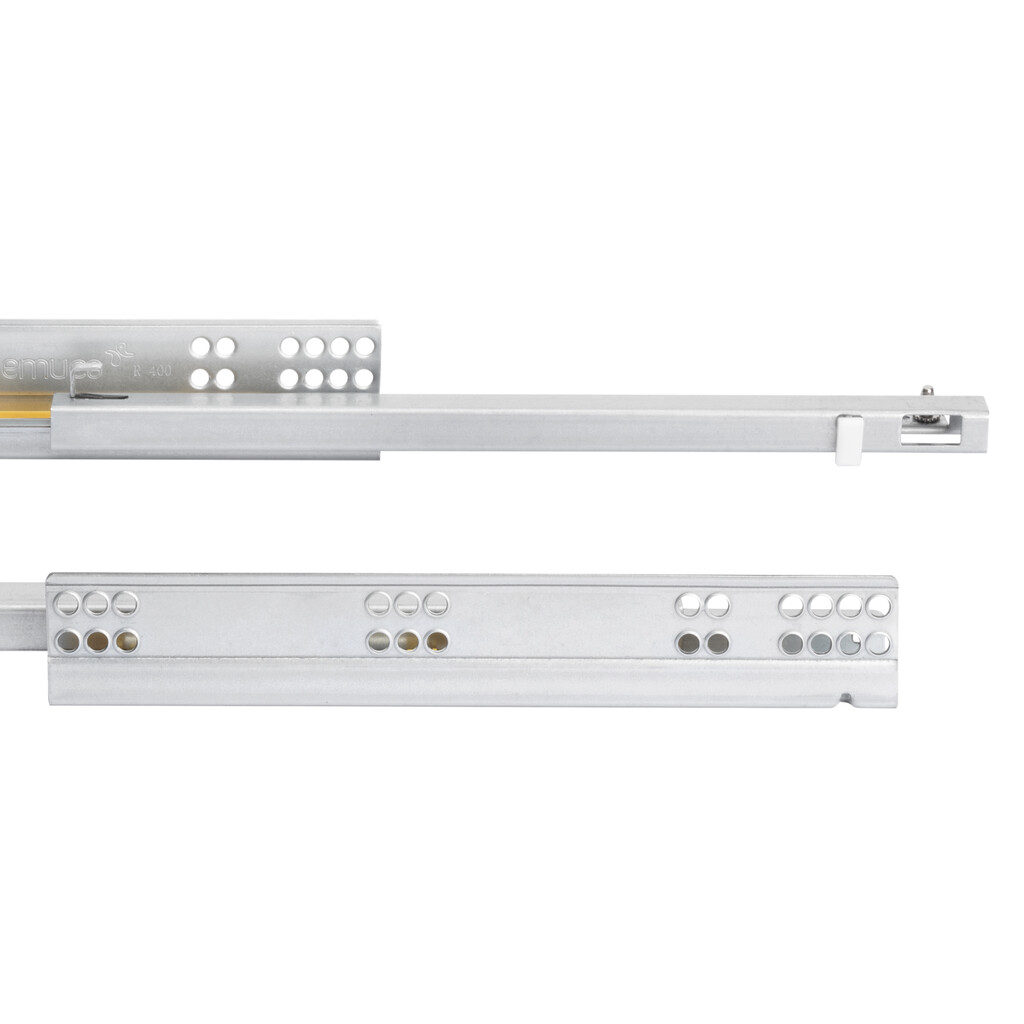

Pair of Concealed runners for drawers Silver, partial extension, with soft closing, depth 340mm, Steel, Zinc plated

3019205 / 8432393127033
DepthHandPackagingFinishingSKU
240Left/Right10 Pair
Zinc plated
3019005
290Left/Right10 Pair
Zinc plated
3019105
340Left/Right10 Pair
Zinc plated
3019205
390Left/Right10 Pair
Zinc plated
3019305
440Left/Right10 Pair
Zinc plated
3019405
490Left/Right10 Pair
Zinc plated
3019505
640Left20 Unit
Zinc plated
3147505
640Right20 Unit
Zinc plated
3148105
690Left20 Unit
Zinc plated
3148205
690Right20 Unit
Zinc plated
3148305

Product features

  • Partial extraction runners for drawers with a depth of 340 mm.
  • Designed for home furniture.
  • They are supplied in complete sets with right and left-hand sides.
  • They have self-closing and a cushioning piston on both runners, which provides soft closing of the drawer.
  • Locking pivot that is supplied mounted on the runner.
  • +5 mm vertical adjustment.
  • It slides on delrin ball bearings that allow for movement horizontally and vertically.
  • Maximum load of 25 kg.

The partial extraction and soft closing hidden runners for Silver drawers are ideal for fitting out your furniture with high quality at the best price.

They stand out for their functioning and the soft closing of the drawer, thanks to a cushioning piston on both runners. They also have a locking pivot mounted on the runner itself in order to prevent the drawer from involuntarily disassembling.

They are made from steel and have smooth and silent closing thanks to their high-quality delrin ball bearings, that allow for horizontal and vertical sliding.

Components

1 pair of runners

Documentation

FAQ


Yes, the drawer measurements, including its dimensions and machining, are fully compatible.This allows customers to mount the Silver partial pull-out slides with push to open function and the Silver soft-close partial pull-out slides on the same drawer.However, they are not compatible with the Slippe partial pull-out slides with push to open function.

The locking pivots that are mounted on the Silver guide rails are designed in order to easily fasten the drawers to the guide rails, thus preventing them from falling during transportation or handling.These pivots avoid the use of additional screws and for their assembly you only need a small hole in the side of the drawer. In this manner the drawer can be assembled and disassembled as many times as you wish.
