Side Bottle rack pull out with soft closing TitaneMax, module 150mm, Steel, Anthracite grey

8381035 / 8432393312675
MXYPackagingFinishingSKU
150984991 Unit
Anthracite grey
8381035
2001455111 Unit
Anthracite grey
8381135

Product features

  • Pull-out kitchen bottle rack with two baskets and 3 dividers for the lower basket.

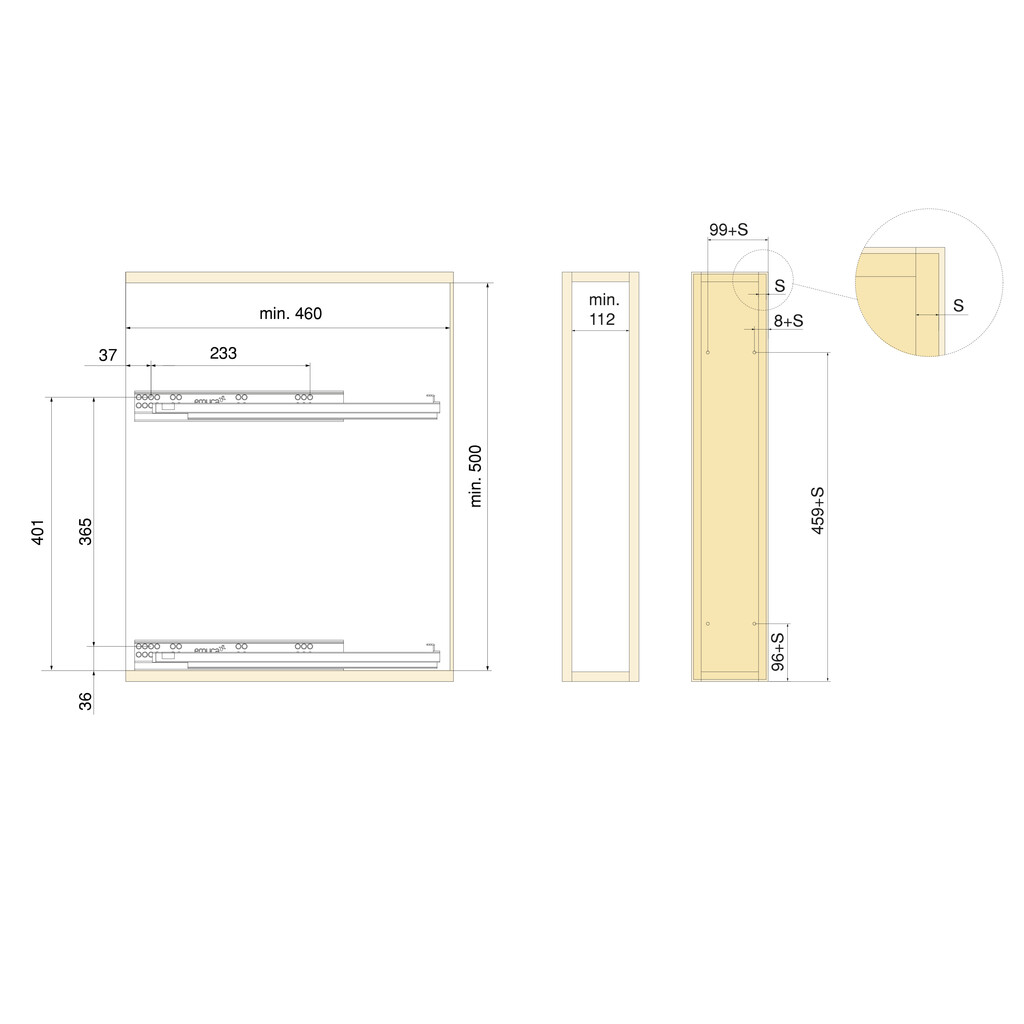

  • Valid for modules with a minimum internal width of 112mm and a minimum depth of 460mm. Compatible for modules with 16, 18 and 19 mm board.
  • Load capacity up to 30 Kg and has a total door adjustment (5D). Being ±2.5mm at the sides, ±2.25mm in depth and up to 13mm in height.
  • Easy mounting on the left side by means of 2 roller guides with total extraction and soft closing.
  • Steel structure in anthracite grey finish with grey plastic dividers.

TitaneMax pull-out wine rack for kitchen base units in anthracite grey finish, ideal for small spaces or occasional furniture.
Easy to install: The fixing is on the left side of the unit and has a total door adjustment (5D), ±2.5mm to the sides, ±2.25mm in depth and up to 13mm in height.
The structure is made of steel with 2 levels and incorporates roller guides with total extraction and soft closing that allow the system to slide smoothly and prevent slamming. For the lower basket it includes 3 anthracite grey plastic dividers to organise the bottles. Load capacity up to 30kg.

Components

1 pull-out bottle rack, pair of full pull-out runners, mounting screws, spacers
