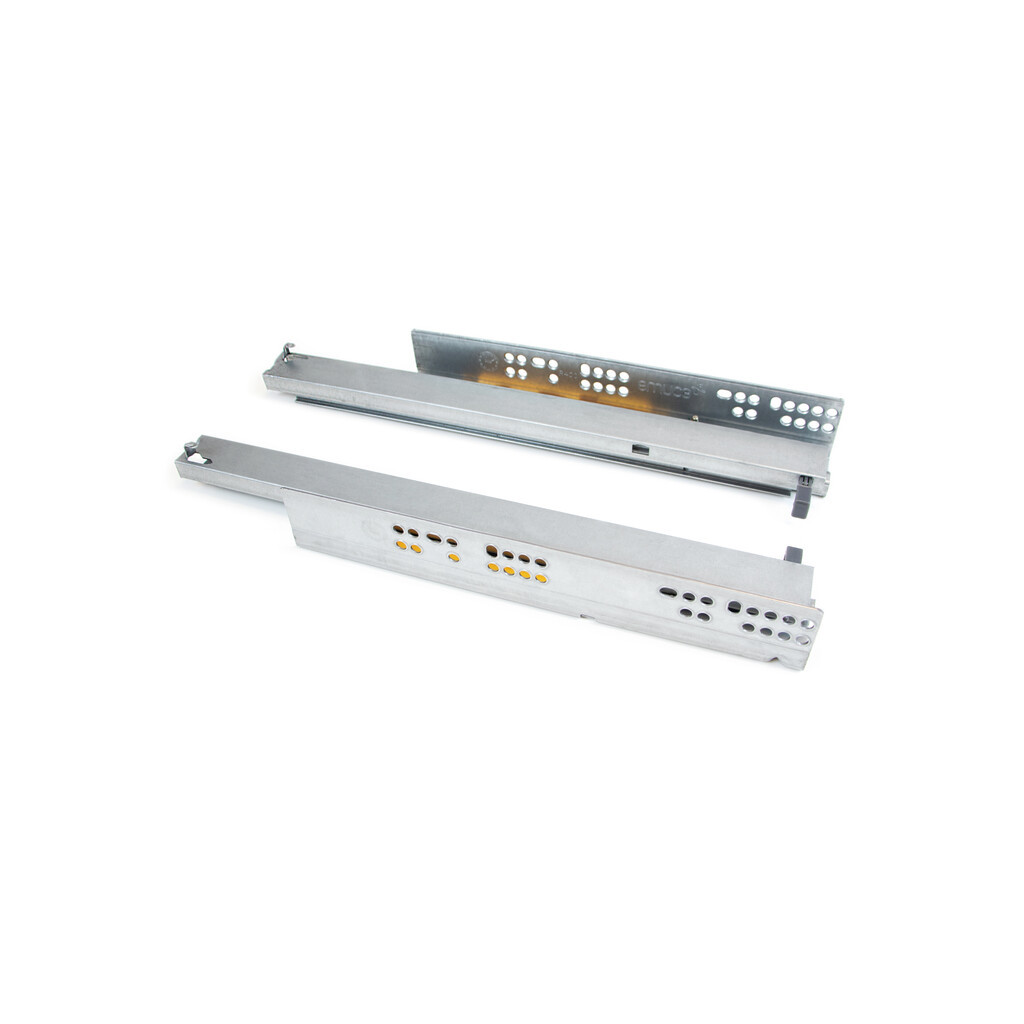

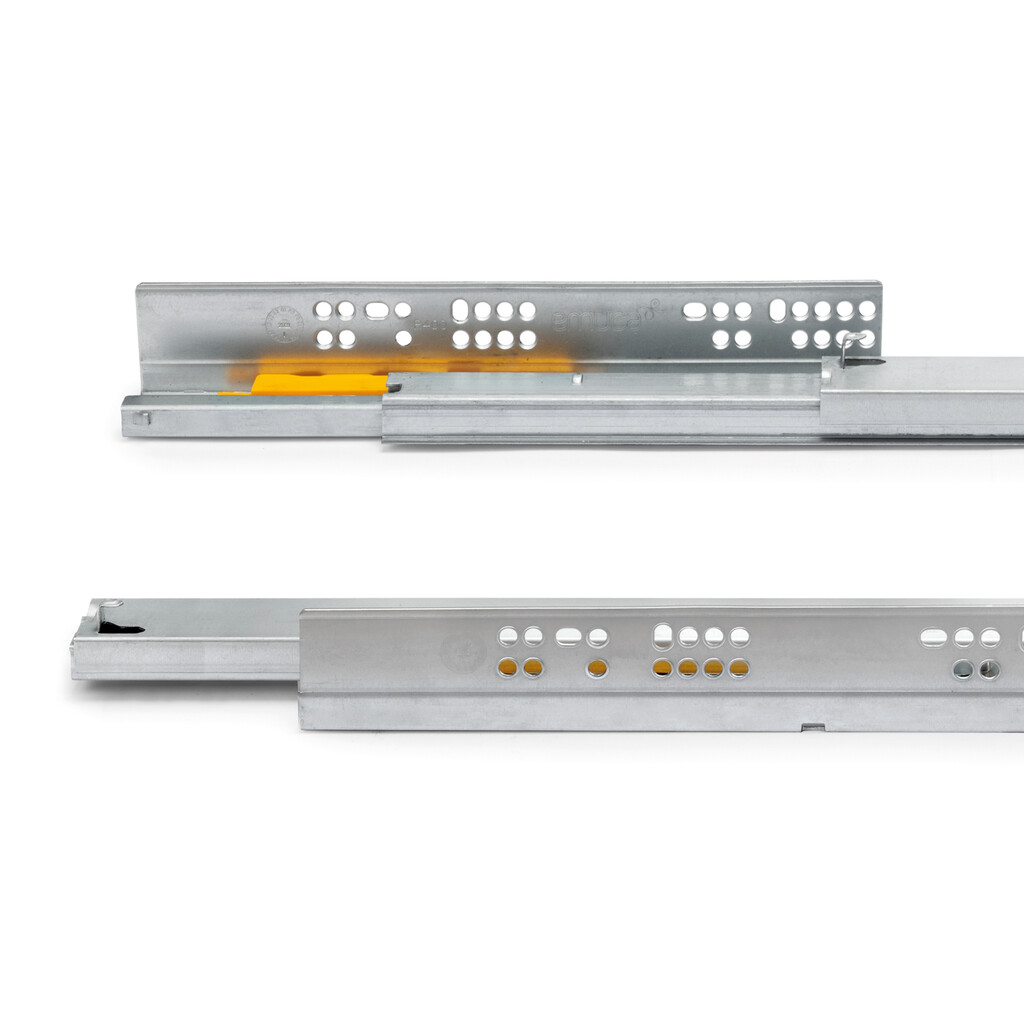

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated

SKU 3122305 / EAN 8432393135274

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-Primary

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-1

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-2

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-3

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-4

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-5

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-6

Pair of Concealed runners for drawers Silver, full extension, with push-out, depth 400mm, Steel, Zinc plated-7

Depth	Packaging	Finishing	SKU
250	10 Pair	Zinc plated	3122005
300	10 Pair	Zinc plated	3122105
350	10 Pair	Zinc plated	3122205
400	10 Pair	Zinc plated	3122305
450	10 Pair	Zinc plated	3122405
500	10 Pair	Zinc plated	3122505

Product features

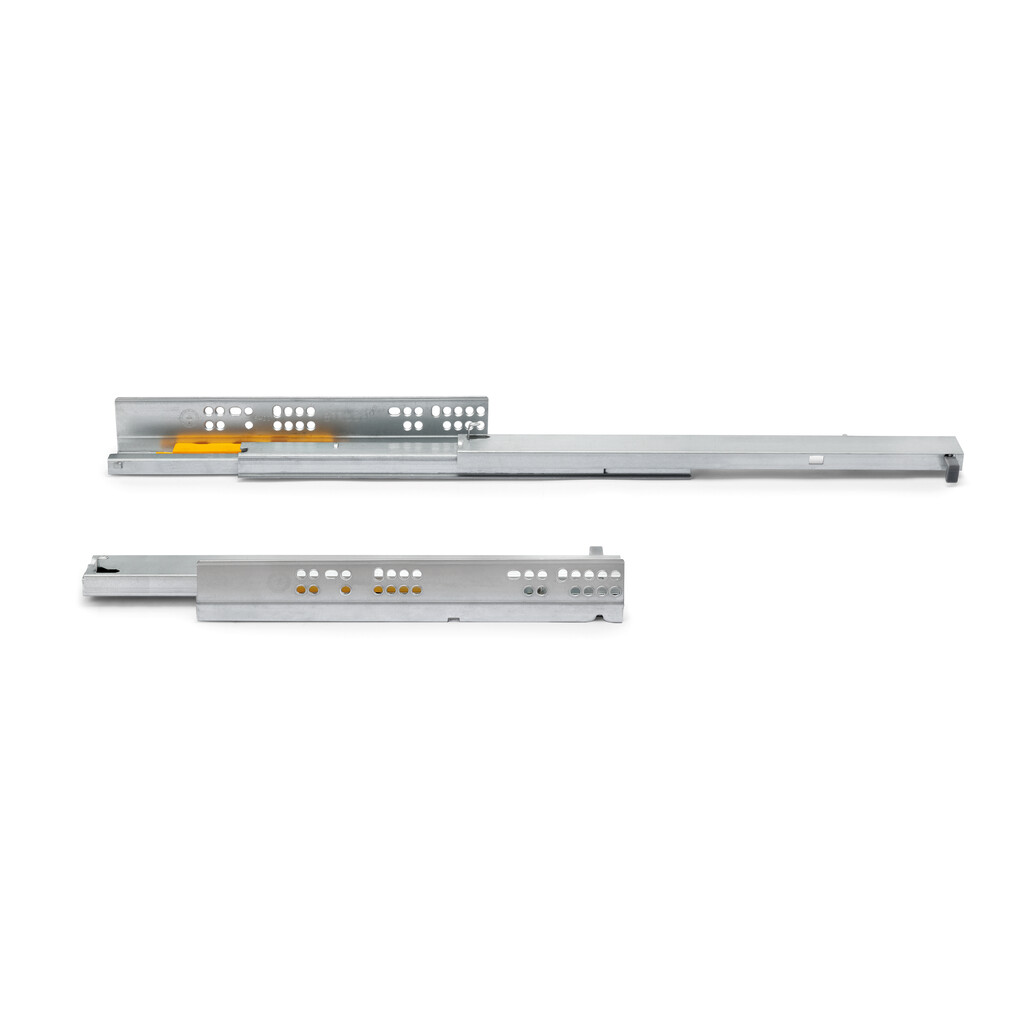

Total extraction push to open runners for drawers with a depth of 400 mm.
Designed for home furniture.
Ejection system when pressure is put on the drawer
They are supplied in complete sets with right and left-hand sides.
+4,5 mm vertical adjustment via a trigger.
It slides on delrin ball bearings that allow for movement horizontally and vertically.
Maximum load of 30 kg.

Product information

The total extraction hidden runners Silver are perfect for home furniture. These runners provide total extraction of the drawer and they have a push to open system when pressure is placed on the drawer. They stand out for their functioning and they also have a locking pivot mounted on the runner itself in order to prevent the drawer from involuntarily disassembling. They are made from steel and have smooth and silent sliding thanks to their high-quality delrin ball bearings, that allow for horizontal and vertical adjustment.

Components

1 pair of runners

Documentation

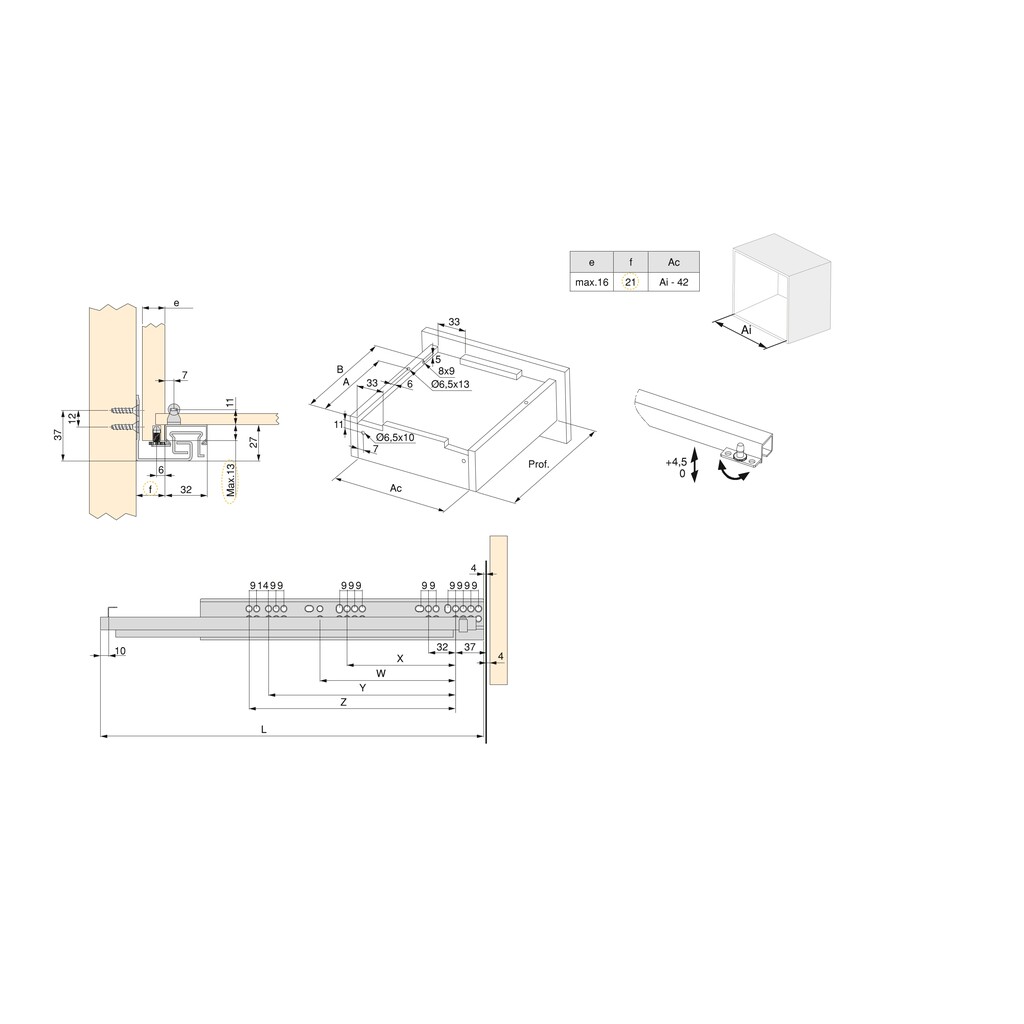

Sketch Assembly tables

FAQ

Are the drawer measurements (dimensions and machining) of the Silver total pull-out slides with push to open compatible with the Silver soft-close total pull-out slides?

Yes, the drawer measurements, including its dimensions and machining, are fully compatible.This allows customers to mount the Silver total pull-out slides with push to open function and the Silver soft-close total pull-out slides on the same drawer.However, they are not compatible with the Slippe total pull-out slides with push to open function.

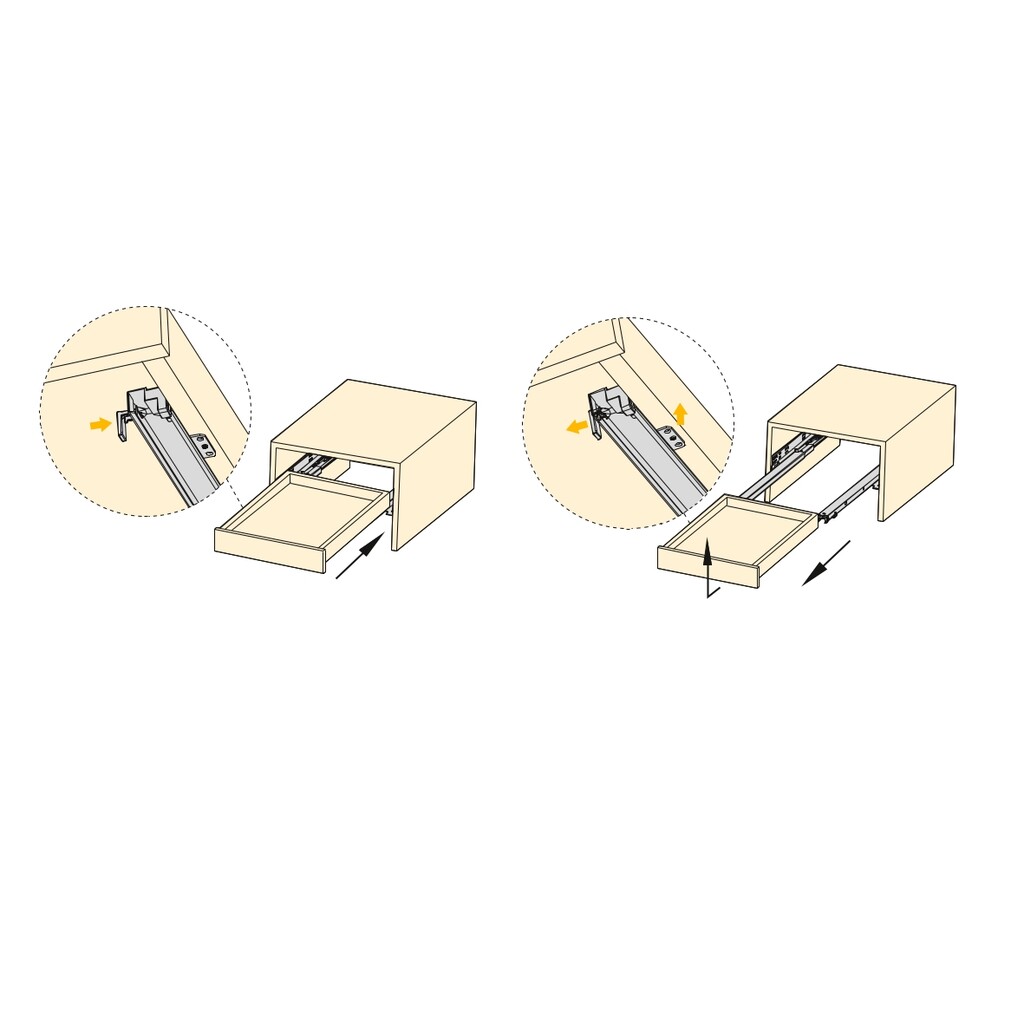

What is the purpose of the locking pivots mounted on the Silver guide rails?

The locking pivots that are mounted on the Silver guide rails are designed in order to easily fasten the drawers to the guide rails, thus preventing them from falling during transportation or handling.These pivots avoid the use of additional screws and for their assembly you only need a small hole in the side of the drawer. In this manner the drawer can be assembled and disassembled as many times as you wish.
