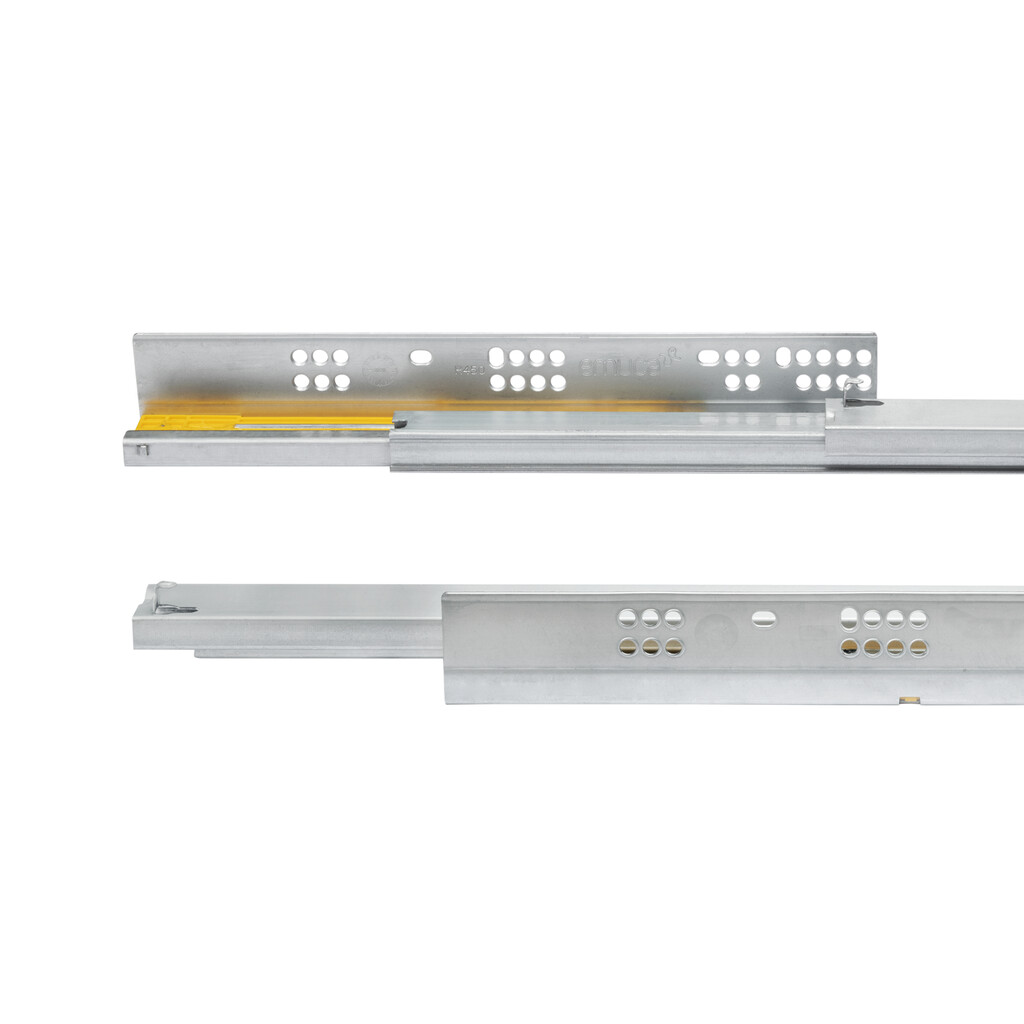

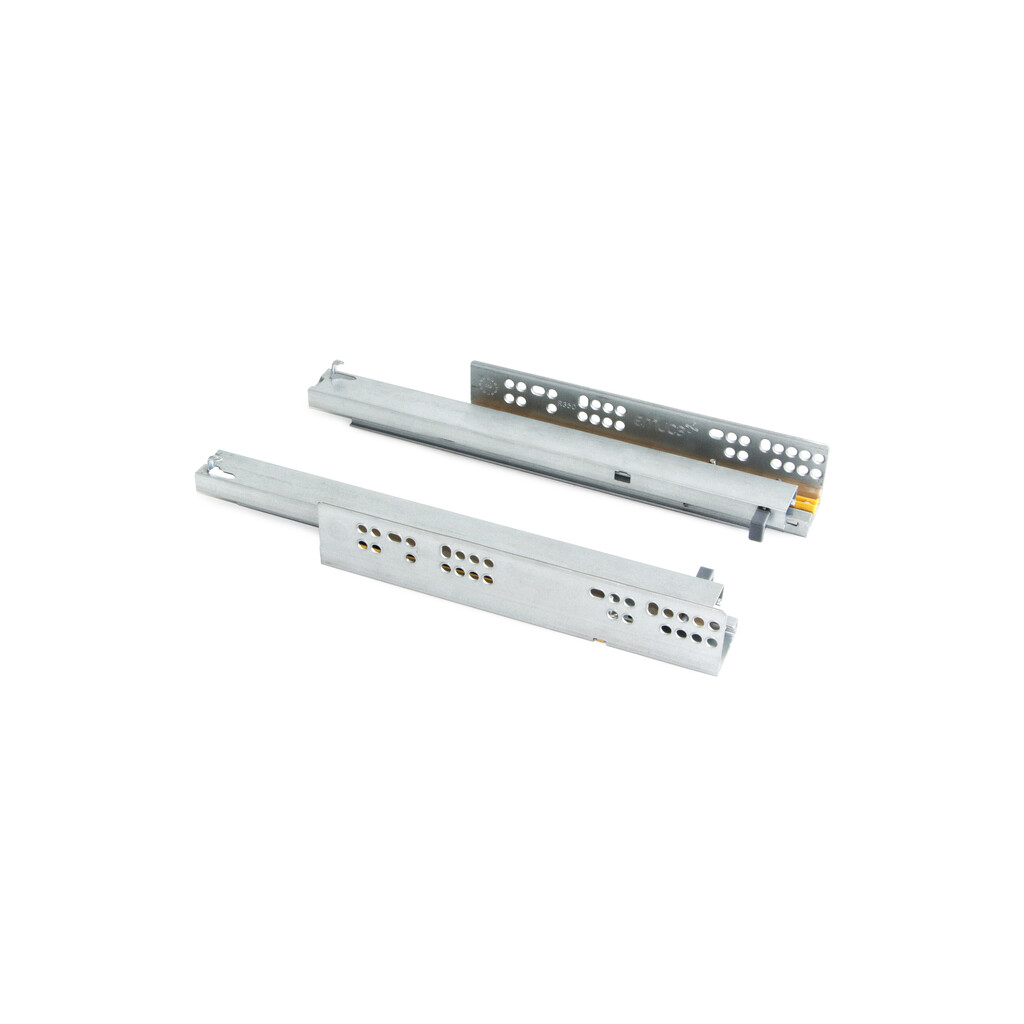

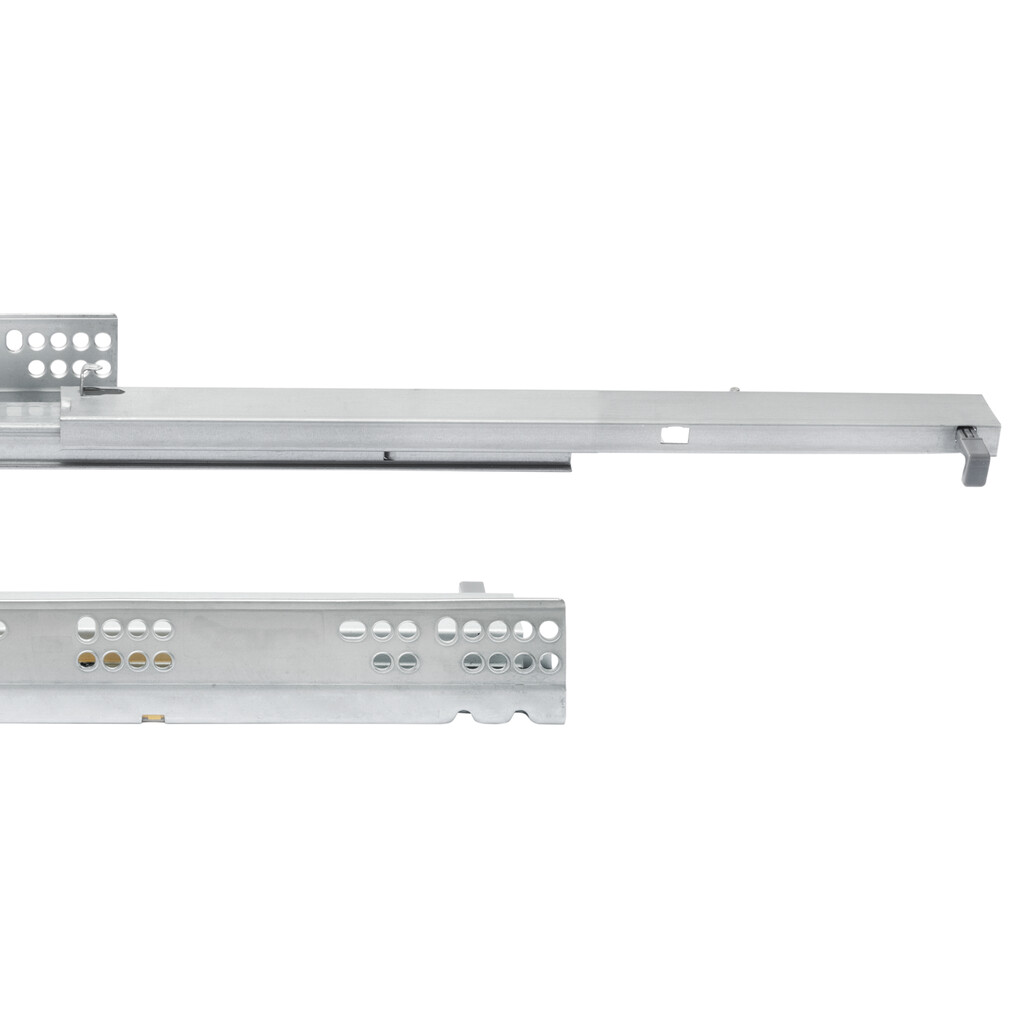

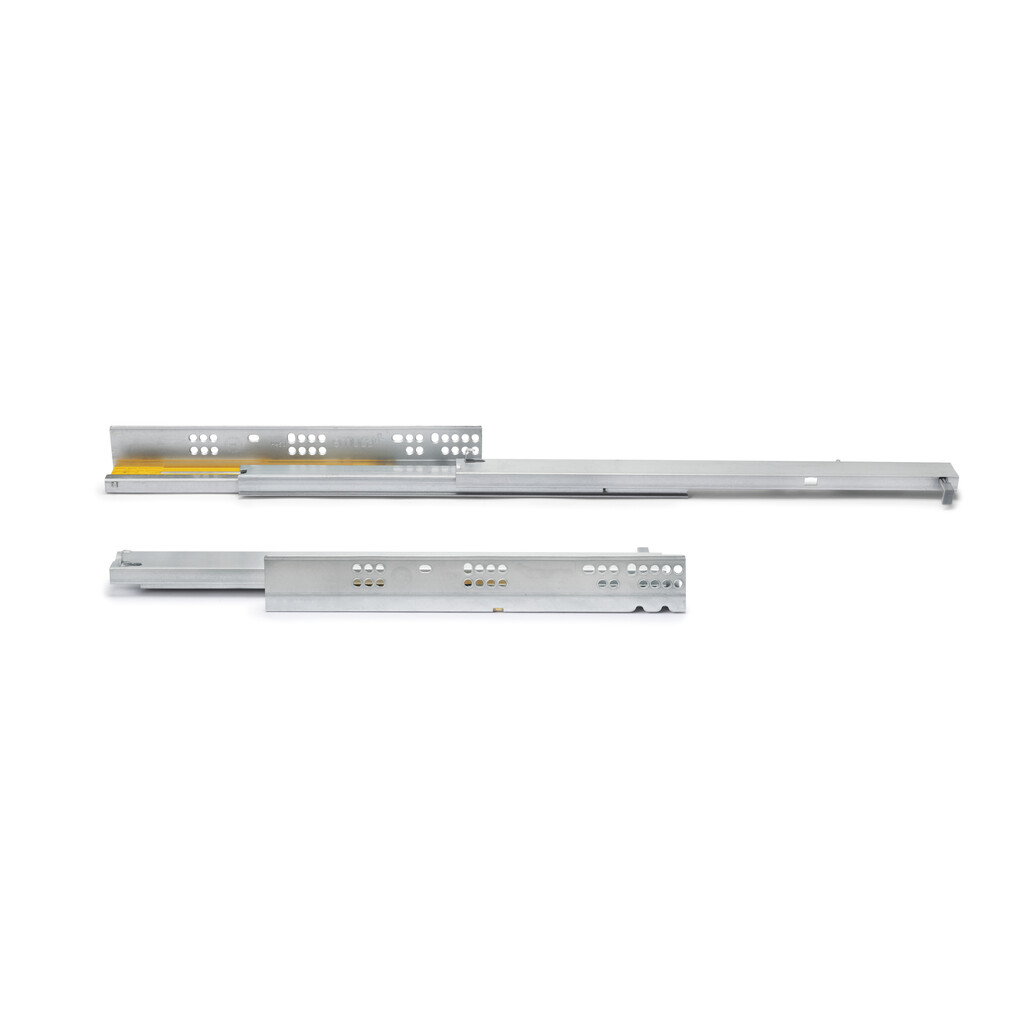

Pair of Concealed runners for drawers Silver, full extension, with soft closing, depth 450mm, Steel, Zinc plated

3120405 / 8432393129464
DepthPackagingFinishingSKU
25010 Pair
Zinc plated
3120005
30010 Pair
Zinc plated
3120105
35010 Pair
Zinc plated
3120205
40010 Pair
Zinc plated
3120305
45010 Pair
Zinc plated
3120405
50010 Pair
Zinc plated
3120505
55010 Pair
Zinc plated
3120605

Product features

  • Total extraction runners for drawers with a depth of 450 mm.
  • Designed for home furniture.
  • They are supplied in complete sets with right and left-hand sides.
  • They have self-closing and a cushioning piston on both runners, which provides soft closing of the drawer.
  • Locking pivot that is supplied mounted on the runner.
  • +4,5 mm vertical adjustment.
  • It slides on delrin ball bearings that allow for movement horizontally and vertically.
  • Maximum load of 30 kg.

The total extraction and soft closing hidden runners for Silver drawers are ideal for fitting out your furniture with high quality at the best price. They stand out for their functioning and the soft closing of the drawer, thanks to a cushioning piston on both runners. They also have a locking pivot mounted on the runner itself in order to prevent the drawer from involuntarily disassembling. They are made from steel and have smooth and silent sliding thanks to their high-quality delrin ball bearings, that allow for horizontal and vertical adjustment.

Components

1 pair of runners

Documentation

FAQ


No, the drawer length is 10 mm longer in the case of the Silver rail. Also, the position of the adjustment and locking pivot is different.

Yes, the drawer measurements, including its dimensions and machining, are fully compatible.This allows customers to mount the Silver total pull-out slides with push to open function and the Silver soft-close total pull-out slides on the same drawer.However, they are not compatible with the Slippe total pull-out slides with push to open function.

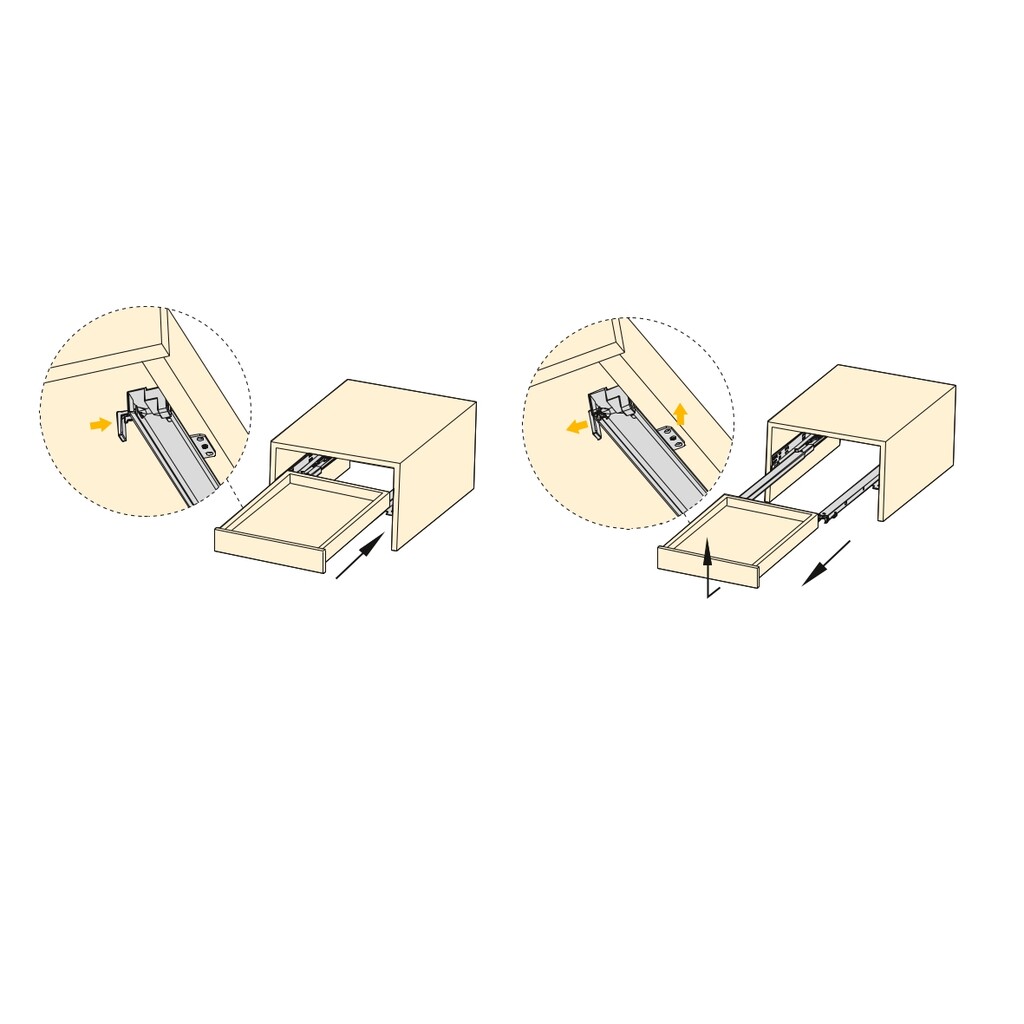

The locking pivots that are mounted on the Silver guide rails are designed in order to easily fasten the drawers to the guide rails, thus preventing them from falling during transportation or handling.These pivots avoid the use of additional screws and for their assembly you only need a small hole in the side of the drawer. In this manner the drawer can be assembled and disassembled as many times as you wish.
