Classic Placard upper tracks and Placard of Groove for sliding door, 2,35 m, Matt anodized, Aluminium

SKU 6301362 / EAN 8432393137520

Essential products

Classic Placard upper tracks and Placard of Groove for sliding door, 2,35 m, Matt anodized, Aluminium-Primary

Classic Placard upper tracks and Placard of Groove for sliding door, 2,35 m, Matt anodized, Aluminium-1

Classic Placard upper tracks and Placard of Groove for sliding door, 2,35 m, Matt anodized, Aluminium-

Longitude	Packaging	Finishing	SKU
3,9 m	8 Unit	White painted	6907612
2,35 m	8 Unit	Matt anodized	6301362
3,9 m	8 Unit	Matt anodized	6907662

Product features

Product information

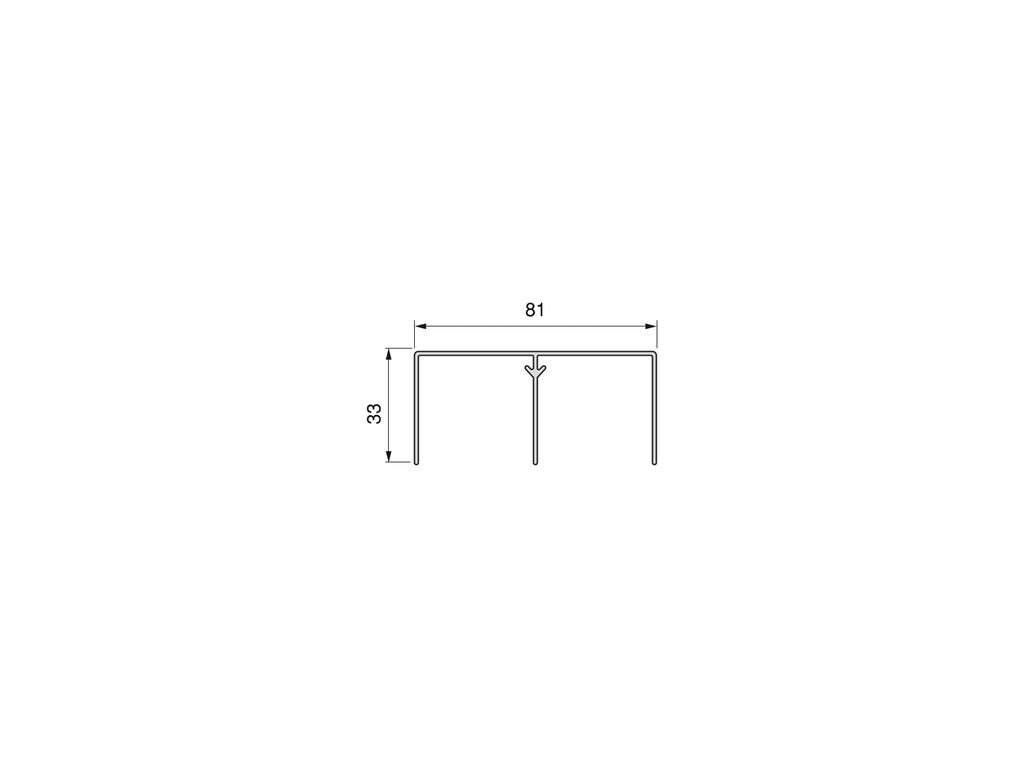

The upper rail for installing doors in the Placard range is made of aluminum, light and flexible material, painted white to give it a more elegant appearance. It is specifically designed to be used on doors 16, 18 and 10 millimeters thick as its dimensions are as follows: 33 mm high, 81 mm wide, and 2.35 meters long. It also comes in a 3.5 and 3.9-meter long presentation. For its installation, it is essential to have a lower Placard rail and a set of trolleys for sliding doors. Finally, the packaging presentation is 8 units.

Components

1 track

Documentation

Sketch Assembly instructions

Essentials

Classic Placard lower track for sliding door

Longitude	Packaging	Finishing	SKU
2,35 m	8 Unit	Matt anodized	6304662

Placard lower track of Groove for sliding door

Longitude	Packaging	Finishing	SKU
2,35 m	8 Unit	White painted	6307112
3,9 m	8 Unit	White painted	6907812
2,35 m	8 Unit	Matt anodized	6307162
3,9 m	8 Unit	Matt anodized	6907862

Placard lower track of Groove Clip for sliding door

Longitude	Packaging	Finishing	SKU
2,35 m	8 Unit	Matt anodized	6304962
3,9 m	8 Unit	Matt anodized	6032162

Placard lower track of Groove with Clip systems

Longitude	Packaging	Finishing	SKU
3,9 m	8 Unit	White painted	6907512
3,9 m	8 Unit	Matt anodized	6907562

Placard wheel set with wheel Ø50 for one sliding door up to 70kg with brake

Model	Board thickness	Latch type	X	Packaging	Finishing	SKU
Groove	10-16	without brake	20	4 KIT	Not defined	7004520
Groove	10-16	with brake	20	4 KIT	Not defined	7004620
Groove	18	with brake	22	4 KIT	Not defined	7917820
Classic	10-16	without brake	20	4 Unit	Not defined	6009520
Classic	10-16	with brake	20	4 KIT	Not defined	6009920

FAQ

What is the RAL number of the rails and handles of the Placard sliding door system?

The RAL number of the white finish on the rails and handles of the Placard sliding door system is approximately 9003. The RAL code of the anthracite grey finish is approximately 7043. The RAL code of the black finish is approximately 9011.
